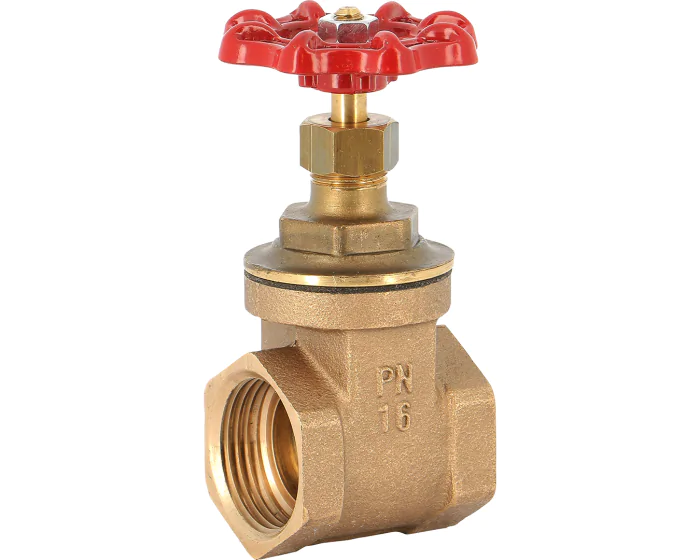

Bronze gate valve 146 BSP with bronze body, gate, and metal-to-metal sealing. Full bore, PN16, female BSP connections for water supply networks. Operates from -10°C to 110°C, ensuring durable and reliable shut-off.
| Specification | Value |
|---|---|
| DN inches NPS | 3/8'' |
| Bonnet material | Brass CW617N |
| Thread standard | ISO 228-1 |
| Bonnet | Screwed |
| Opening device | Handwheel |
| Application | Water supply and distribution network |
| Shaft/stem matérial | Brass CW614N |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 38.0 |
| Sealing | Metal / Metal |
| Gasket | EPDM |
| Kv (m³/h) | 9.2 |
| Body material | Bronze |
| Gate material | Brass CW617N |
| Bore | Full |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | BSP FF |
| Seats | Bronze |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Non-rising |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Bronze Full 3/8'' | 146003 | S1010392 |
€10.16
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1/2'' | 146004 | S1010393 |
€10.69
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 3/4'' | 146005 | S1010394 |
€14.37
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1'' | 146006 | S1010395 |
€18.27
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1''1/4 | 146007 | S1010396 |
€28.20
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 1''1/2 | 146008 | S1010397 |
€35.90
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 2'' | 146009 | S1010398 |
€51.86
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 2''1/2 | 146010 | S1010399 |
€92.96
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 3'' | 146011 | S1010400 |
€114.81
(excl. btw)
|
add to cart |
| BSP FF Bronze Full 4'' | 146012 | S1010401 |
€209.43
(excl. btw)
|
add to cart |
